UL20410 Polyurethane PUR Sheathed Elastic Spiral Cable

Product Categories
WCH Cable Industrial Co., Ltd.
Contact Now

UL20410 Polyurethane PUR Sheathed Elastic Spiral Cable

Brand Name : WCH Cable

Model Number : UL20410

Certification : UL, CUL, AWM

Place of Origin : Dongguan, China

MOQ : 200pcs

Price : USD 0.26 per piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000000 pcs per month

Delivery Time : 9 days for ready goods

Packaging Details : 200pcs per carton

Spiral Style : UL20410

Conductor : Pure coper wire

Insulation : Polypropylene PP

Sheath Material : Polyurethane PUR

Rated Temperature : 60 Cel Degree

Rated Voltage : 300V

Standard : UL758, UL1581

Sheath Thickness : 30 mils

Contact Now

UL20410 Polyurethane PUR Sheathed Elastic Spiral Cable

Conductor:High purity copper wire

Insulation Material: Polypropylene PP

Jacket Material: Quality Polyurethane PUR

Rated Voltage: 60 Cel degree

Rated Temperature: 300V

Applied Standard: UL758, UL1581

Uniform insulation thickness for easy stripping operation.

UL Style Number Core Quantity Conductor Size Conductor Strands Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL20410 2C 30 7/0.100 0.23 0.80 0.76 3.20 381.00
2C 28 7/0.127 0.23 0.90 0.76 3.40 239.00
2C 26 7/0.16 0.23 1.00 0.76 3.60 150.00
2C 24 11/0.16 0.23 1.10 0.76 3.80 94.20
2C 22 17/0.16 0.23 1.30 0.76 4.20 59.40
2C 20 21/0.178 0.23 1.50 0.76 4.60 36.70
2C 18 34/0.178 0.23 1.80 0.76 5.20 23.20
2C 16 26/0.25 0.23 2.00 0.76 5.80 14.60
3C 30 7/0.100 0.23 0.80 0.76 3.40 381.00
3C 28 7/0.127 0.23 0.90 0.76 3.50 239.00
3C 26 7/0.16 0.23 1.00 0.76 3.80 150.00
3C 24 11/0.16 0.23 1.10 0.76 4.00 94.20
3C 22 17/0.16 0.23 1.30 0.76 4.40 59.40
3C 20 21/0.178 0.23 1.50 0.76 4.80 36.70
3C 18 34/0.178 0.23 1.80 0.76 5.50 23.20
4C 30 7/0.100 0.23 0.80 0.76 4.80 381.00
4C 28 7/0.127 0.23 0.90 0.76 5.10 239.00
4C 26 7/0.16 0.23 1.00 0.76 5.30 150.00
4C 24 11/0.16 0.23 1.10 0.76 5.50 94.20
4C 22 17/0.16 0.23 1.30 0.76 6.00 59.40
4C 20 21/0.178 0.23 1.50 0.76 6.50 36.70
5C 30 7/0.100 0.23 0.80 0.76 5.00 381.00
5C 28 7/0.127 0.23 0.90 0.76 5.30 239.00
5C 26 7/0.16 0.23 1.00 0.76 5.60 150.00
5C 24 11/0.16 0.23 1.10 0.76 5.80 94.20
5C 22 17/0.16 0.23 1.30 0.76 6.40 59.40
6C 30 7/0.100 0.23 0.80 0.76 5.30 381.00
6C 28 7/0.127 0.23 0.90 0.76 5.60 239.00
6C 26 7/0.16 0.23 1.00 0.76 5.90 150.00
6C 24 11/0.16 0.23 1.10 0.76 6.20 94.20

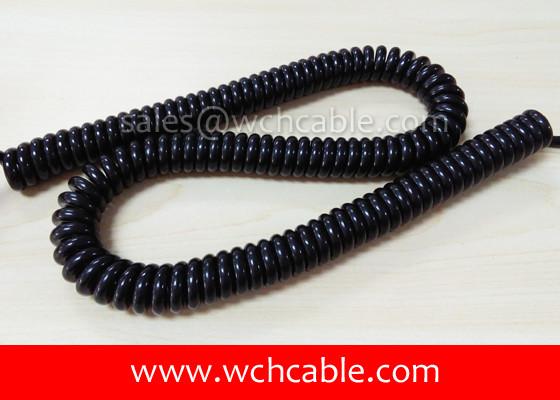

UL20410 Polyurethane PUR Sheathed Elastic Spiral Cable

Tag: UL20410, spiral cable
