UL20862 Approval Marked Spiral Cable

WCH Cable Industrial Co., Ltd.
Contact Now

UL20862 Approval Marked Spiral Cable

Brand Name : WCH Cable

Model Number : UL20862

Certification : UL, Cul, AWM

Place of Origin : Dongguan, China

MOQ : 200 pcs

Price : USD0.22 per piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100,000pcs per week

Delivery Time : 9 days for ready goods

Packaging Details : 200 pcs per box

Conductor : High purity copper wire

Rated Temperature : 80°C

Insulation : Thermoplastic TPU

Rated Voltage : 120V

Jacket Material : Thermoplastic TPU

Executed Standard : UL758, UL1581

Feature : Approval Marked

Flammability : VW-1, FT1, FT2

Contact Now

UL20862 Approval Marked Spiral Cable

UL20862 is sheathed by Thermoplastic TPU, rated 80°C 120V. Each package unit of UL20862 is labeled with a blue approval sticker.

  • Style Number: UL20862
  • Rated Temperature: 80°C
  • Rated Voltage: 120V.
  • Spark Voltage: 3KV.
  • Dielectric Strength: 2000Vac for 60 seconds without breakdown.
  • Flammability Grade: VW-1, FT1, FT2.
  • Conductor Material: High purity copper wire strands, tinned or bare, optional.
  • Conductor Size: 36AWG or more.
  • Insulation: AWM complying material.
  • Insulation Colour: Black, brown, red, orange, yellow, green, blue, violet, gray, white, pink, transparent, etc.
  • Core Quantity: 2 cores or above.
  • All individually insulated conductor wires cabled together, twisted lay length to be determined.
  • Sheath: High quality Thermoplastic TPU material.
  • Sheath Effect: Glossy, Matt, Half matt.
  • Screen Shield: tinned copper wire strands, or spiral wrapped with aluminum foil.
  • Shield Coverage: 65% minimum.
  • Standard: AWM, UL758, UL1581.
  • Agile routing and handling.
  • High flexibility, suitable to be coiled as curly spiral cable.
  • Uniform insulation thickness for easy stripping.
  • Resistant to oil, organic solvent, strong acid, gas, and other chemicals.
  • Hydrolysis resistant, excellent performance to be mounted with waterproof connector.
  • UV resistant.
  • Capable of handling temperature extremes to -50°C.
  • Application: electronic equipment wiring purpose.
  • Case examples: Truck Crane, Solar Controller, Motive Electricity Cabinet, etc.
  • No contain of halogens, phthalates, or heavy metals.
  • RoHS, and RoHS2 compliant.
  • Reach compliant.
  • WEEE compliant.

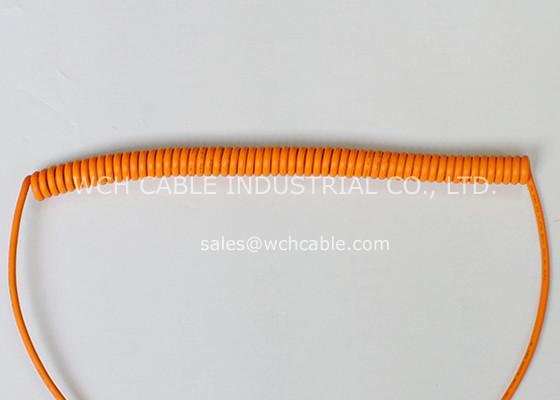

UL20862 Approval Marked Spiral Cable

Tag: UL20862, spiral cable
