UL21292 Mechanical Abuse Compatible Curly Cable 80C 30V

Product Categories
WCH Cable Industrial Co., Ltd.
Contact Now

UL21292 Mechanical Abuse Compatible Curly Cable 80C 30V

Brand Name : WCH Cable

Model Number : UL21292

Certification : UL, Cul, AWM

Place of Origin : Dongguan, China

MOQ : 200 pieces

Price : USD0.24 per piece

Payment Terms : L/C, D/P, D/A, T/T, Western Union, MoneyGram

Supply Ability : 200,000 pieces per month

Delivery Time : 9 days for ready goods

Packaging Details : 200 pieces per carton

Style Number : UL21292

Conductor Material : Highly pure copper wire strands

Rated Temperature : 80°C

Insulation Material : AWM verified materials

Rated Voltage : 30V

Jacket Material : Quality Thermoplastic TPU

Application : Internal Wiring

Jacket Thickness : 15 Mils minimum

Contact Now

UL21292 Mechanical Abuse Compatible Curly Cable 80C 30V

Curly cable style number: UL21292;

Curly cable rated level: 80°C, 30V;

Curly cable feature: mechanical abuse compatible;

Curly cable dimensions:

  • Extended length: curly spiral section length x 3.5;
  • Curly coil diameter: cable overall diameter x 3.5;
  • Both straight ends cut flat or tinned, optional.

Style Number Core Quantity Conductor Size Conductor Strands Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL21292 2C 30 11/0.08 0.23 0.80 0.38 3.00 381.00
2C 28 16/0.08 0.23 0.90 0.38 3.30 239.00
2C 26 26/0.08 0.23 1.00 0.38 3.50 150.00
2C 24 41/0.08 0.23 1.10 0.38 3.70 94.20
2C 22 65/0.08 0.23 1.30 0.38 4.10 59.40
2C 20 104/0.08 0.23 1.50 0.38 4.50 36.70
2C 18 164/0.08 0.23 1.80 0.38 5.20 23.20
2C 16 265/0.08 0.23 2.00 0.38 5.60 14.60
3C 30 11/0.08 0.23 0.80 0.38 3.30 381.00
3C 28 16/0.08 0.23 0.90 0.38 3.50 239.00
3C 26 26/0.08 0.23 1.00 0.38 3.70 150.00
3C 24 41/0.08 0.23 1.10 0.38 3.90 94.20
3C 22 65/0.08 0.23 1.30 0.38 4.30 59.40
3C 20 104/0.08 0.23 1.50 0.38 4.80 36.70
3C 18 164/0.08 0.23 1.80 0.38 5.20 23.20
4C 30 11/0.08 0.23 0.80 0.38 3.50 381.00
4C 28 16/0.08 0.23 0.90 0.38 3.80 239.00
4C 26 26/0.08 0.23 1.00 0.38 4.00 150.00
4C 24 41/0.08 0.23 1.10 0.38 4.20 94.20
4C 22 65/0.08 0.23 1.30 0.38 4.70 59.40
4C 20 104/0.08 0.23 1.50 0.38 5.20 36.70
5C 30 11/0.08 0.23 0.80 0.38 3.80 381.00
5C 28 16/0.08 0.23 0.90 0.38 4.20 239.00
5C 26 26/0.08 0.23 1.00 0.38 4.40 150.00
5C 24 41/0.08 0.23 1.10 0.38 4.70 94.20
5C 22 65/0.08 0.23 1.30 0.38 5.30 59.40
6C 30 11/0.08 0.23 0.80 0.38 4.20 381.00
6C 28 16/0.08 0.23 0.90 0.38 4.40 239.00
6C 26 26/0.08 0.23 1.00 0.38 4.70 150.00
6C 24 41/0.08 0.23 1.10 0.38 5.00 94.20

UL21292 Mechanical Abuse Compatible Curly Cable 80C 30V

Tag: UL21292, cable, curly cable


China UL21292 Mechanical Abuse Compatible Curly Cable 80C 30V factory

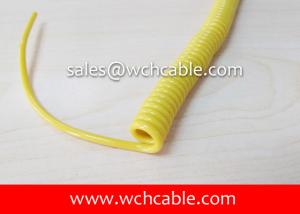

UL21292 Mechanical Abuse Compatible Curly Cable 80C 30V Images
