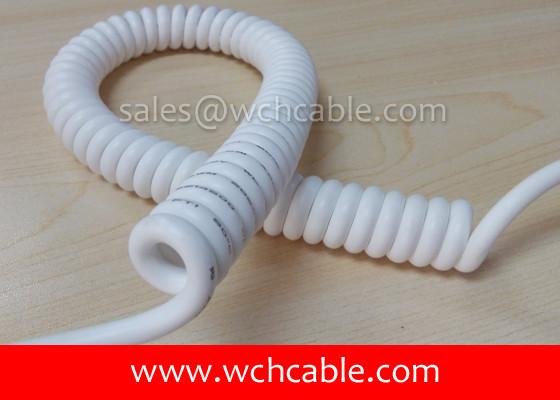

UL Spiral Cable, AWM Style UL21215 27AWG 18C VW-1 80°C 600V, PVC / PUR

WCH Cable Industrial Co., Ltd.
Contact Now

UL Spiral Cable, AWM Style UL21215 27AWG 18C VW-1 80°C 600V, PVC / PUR

Brand Name : WCH Cable

Model Number : UL21215

Certification : UL, Cul, AWM

Place of Origin : Dongguan, China

MOQ : 200 pcs

Price : USD0.213 per piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100,000pcs per week

Delivery Time : 9 days for ready goods

Packaging Details : 200 pcs per box

Style Number : UL21215

Conductor Material : Highly pure copper wire

Rated Temperature : 80°C

Insulation Material : Polyvinyl Chloride PVC

Rated Voltage : 600V

Sheath Material : Quality Polyurethane PUR

Alternative Style : UL20234

Contact Now

UL Spiral Cable, AWM Style UL21215 27AWG 18C VW-1 80°C 600V, PVC / PUR

Conductor size: 27AWG

Wire assembly: 18 cores

Insulation color: Black, red, brown, green, yellow, white, etc.

Insulation material: PVC.

Shield: no shield.

Sheath color: White.

Sheath material: PUR.

Sheath thickness: 0.76m

Flammability: VW-1.

Rated temperature: 80°C

Rated voltage: 600V

Conductor resistance: 192Ω/km

Insulation resistance: 10mΩ/km

Recommended Use: electronic equipment wiring.

Alternative Style: UL20234

Remark: color of wires or sheath can be changed according to customer's requirement.
