UL21293 One-stop Factory Made Self-Regulating Flexible Spring Cable 80C 300V

Name: UL21293 Onestop Factory Made SelfRegulating Flexible Spring Cable 80C 300V
Brand: WCH Cable
Price: 0.55 USD

China UL21293 One-stop Factory Made Self-Regulating Flexible Spring Cable 80C 300V factory

Brand Name : WCH Cable

Model Number : UL21293

Certification : UL, Cul, AWM

Place of Origin : Dongguan, China

MOQ : 200pcs

Price : USD0.55 per piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100,000pcs per week

Delivery Time : 9 days for ready goods

Packaging Details : 200pcs per carton

Conductor : High purity copper wire

Insulation : AWM compliant materials

Jacket Material : Thermoplastic Polyurethane TPU

Rated Temperature : 80 Deg C

Rated Voltage : 300V

Style Number : UL21293

Contact Now

UL21293 One-stop Factory Made Self-Regulating Flexible Spring Cable 80C 300V

Conductor: High Purity Annealed Tinned Stranded Copper Wire
Insulation: PP / Polypropylene

Jacket: TPU / Thermoplastic Polyurethane
Rated Temperature: 80 Deg C
Rated Voltage: 300V
Uniform wall thickness for smooth stripping & process treatment.
Applied Standard: UL758
Feature: UL Approval, & highly spring force

Parameters of UL21293 One-stop Factory Made Self-Regulating Flexible Spring Cable 80C 300V

Style Number	Core Quantity	Copper Conductor		Insulation Thickness	Insulation Diameter	Jacket Thickness	Overall Diameter	Conductor Resistance
Style Number	Core Quantity	AWG	No/mm	mm	mm	mm	mm	Ω/KM
UL21293	2C	30	7/0.100	0.23	0.80	0.38	3.00	381.00
	2C	28	7/0.127	0.23	0.90	0.38	3.30	239.00
	2C	26	7/0.16	0.23	1.00	0.38	3.50	150.00
	2C	24	11/0.16	0.23	1.10	0.38	3.70	94.20
	2C	22	17/0.16	0.23	1.30	0.38	4.10	59.40
	2C	20	21/0.178	0.23	1.50	0.38	4.50	36.70
	2C	18	34/0.178	0.23	1.80	0.38	5.20	23.20
	2C	16	26/0.25	0.23	2.00	0.38	5.60	14.60
	3C	30	7/0.100	0.23	0.80	0.38	3.30	381.00
	3C	28	7/0.127	0.23	0.90	0.38	3.50	239.00
	3C	26	7/0.16	0.23	1.00	0.38	3.70	150.00
	3C	24	11/0.16	0.23	1.10	0.38	3.90	94.20
	3C	22	17/0.16	0.23	1.30	0.38	4.30	59.40
	3C	20	21/0.178	0.23	1.50	0.38	4.80	36.70
	3C	18	34/0.178	0.23	1.80	0.38	5.20	23.20
	4C	30	7/0.100	0.23	0.80	0.38	3.50	381.00
	4C	28	7/0.127	0.23	0.90	0.38	3.80	239.00
	4C	26	7/0.16	0.23	1.00	0.38	4.00	150.00
	4C	24	11/0.16	0.23	1.10	0.38	4.20	94.20
	4C	22	17/0.16	0.23	1.30	0.38	4.70	59.40
	4C	20	21/0.178	0.23	1.50	0.38	5.20	36.70
	5C	30	7/0.100	0.23	0.80	0.38	3.80	381.00
	5C	28	7/0.127	0.23	0.90	0.38	4.20	239.00
	5C	26	7/0.16	0.23	1.00	0.38	4.40	150.00
	5C	24	11/0.16	0.23	1.10	0.38	4.70	94.20
	5C	22	17/0.16	0.23	1.30	0.38	5.30	59.40
	6C	30	7/0.100	0.23	0.80	0.38	4.20	381.00
	6C	28	7/0.127	0.23	0.90	0.38	4.40	239.00
	6C	26	7/0.16	0.23	1.00	0.38	4.70	150.00
	6C	24	11/0.16	0.23	1.10	0.38	5.00	94.20

UL21293 One-stop Factory Made Self-Regulating Flexible Spring Cable 80C 300V

UL21293 One-stop Factory Made Self-Regulating Flexible Spring Cable 80C 300V

We provide the one-stop solution for spiral cable requirement.

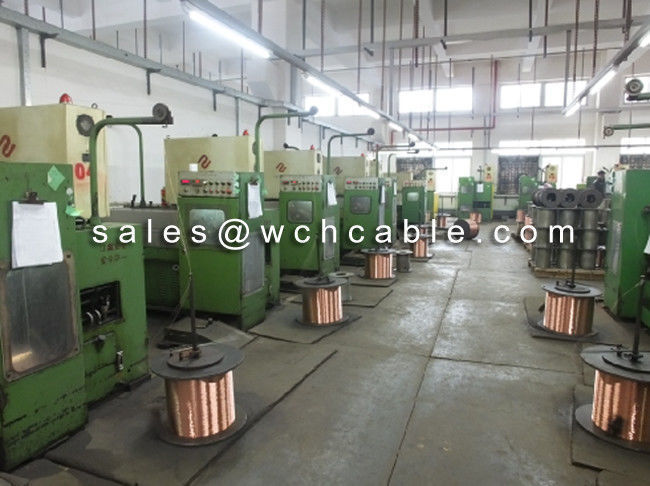

Here, we produce the raw cable on our own, and make the spiral coiling as well.

All production procedures are well managed and quality under control.

UL21293 One-stop Factory Made Self-Regulating Flexible Spring Cable 80C 300V

UL21293 One-stop Factory Made Self-Regulating Flexible Spring Cable 80C 300V

UL21293 One-stop Factory Made Self-Regulating Flexible Spring Cable 80C 300V

Tag: UL21293, spring cable
